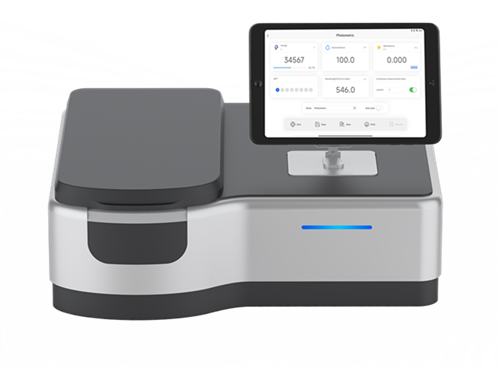

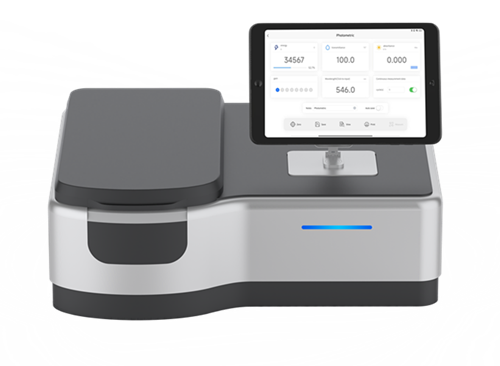

Xenon Lamp Spectrophotometer
Item No.: M Series Xenon Lamp Spectrophotometer
High quality flashing xenon lamp is from Hamamatsu, which can be used at least 5-year.
Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, Multi-wavelength test, etc
Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, Multi-wavelength test, etc
Description
M Series Xenon Lamp Spectrophotometer
Specifications:
| Features: | ||||||
| ● 11-inch Touch Screen | ||||||
| ● High quality flashing xenon lamp is from Hamamatsu, which can start to test directly without preheating. The lamp can be used at least 5-year. | ||||||
| ● Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, Multi-wavelength test, etc | ||||||
| ● Equipped with GLP/GMP functions, including user management, audit tracking, log inquiry, etc. | ||||||
| ● Support real-time sending of data via email and mobile SMS. | ||||||
| ● Adopts 3.0 Bluetooth protocol, with stable transmission and free interconnection within 10 meters. | ||||||
| ● Can be directly connected to laser printer via WiFi and thermal printer via Bluetooth. | ||||||
| ● Extensive accessories are optional, such as auto cell holder, film holder, tube rack, integrating sphere, reflection accessory, peltier/sipper system, 21 CFR compliant software, etc. |
Specifications:
| Model | M500-X | M501-X | M501S-X | M600-X | M601-X | M601S-X |
| Optical System | Single Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm | ||||
| Wavelength Range | 190-1100 nm | |||||
| Spectral Bandwidth | 2nm | 1nm | 0.5/1/2/4/5nm | 2nm | 1nm | 0.5/1/2/4/5nm |
| Wavelength Accuracy | ±0.3nm | |||||
| Wavelength Repeatability | <=0.1nm | |||||
| Photometric Accuracy | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | |||||
| Photometric Repeatability | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | |||||
| Photometric Range | 0-400%T, -4~4A | |||||
| Resolution | 0.00001Abs | |||||
| Stray Light | <=0.03%T@220nm, 360nm | |||||
| Stability | ±0.0001A | |||||
| Baseline Flatness | ±0.0004A | |||||
| Noise | 0.0005A@500nm | |||||
| Work Mode | T, A, C, E | |||||
| Scanning Speed | Hi, Med, Low (Max. 6000nm/min) | |||||
| Display | 11-inch Touch Screen | |||||
| Light Source | Xenon Lamp | |||||
| Detector | Silicon Photodiode | |||||
| Cuvette Holder | 10mm manual 4-cell holder | 10mm single hole cell holder | ||||
| Output | Cloud connectivity/Email/SMS/Bluetooth/WiFi | |||||
| Power | AC 220V/50Hz or AC 110V/60Hz | |||||
| Shipping Size | 810*660*390mm | 880*690*520mm | ||||
| Gross Weight | 27kg | 45kg | ||||
| Standard Accessaries | 10mm glass cuvette x 4, 10mm quartz cuvette x 2, Power cord, User's Manual | |||||
